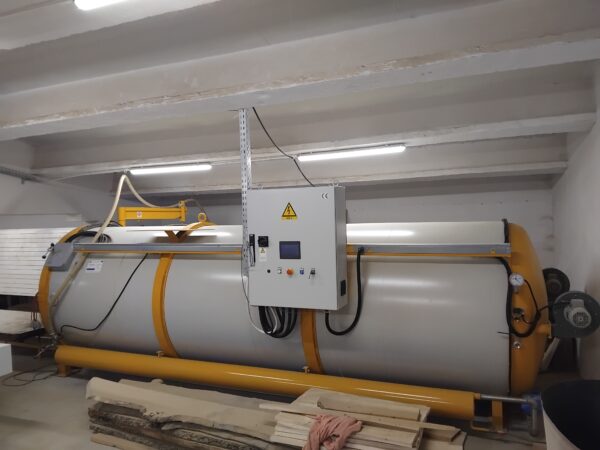

ES5 WITH ELECTRIC HEATING
Second hand ES5 vacuum dryer for wood with electric heating.

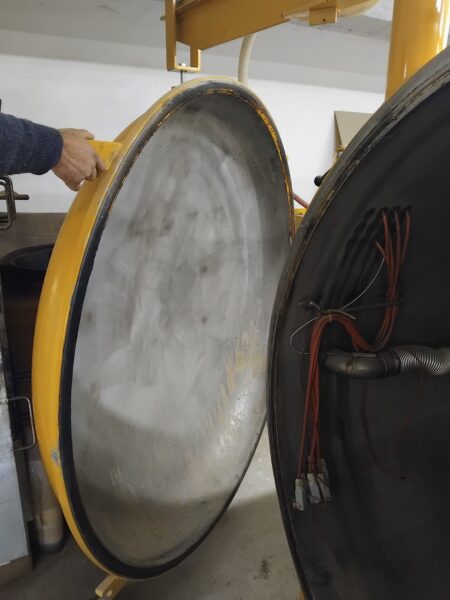

AUTOCLAVE FEATURES
- CONSTRUCTION FEATURES AISI-304 STAINLESS STEEL, PARTIALLY INSULATED
- EXTERNAL DIAMETER 1.600 mm
- LENGTH OF CYLINDRICAL PART 5.000 mm
- DRYER LENGHT 5.900 mm
- DRYER TOTAL LENGHT PLUS SLIDING GUIDES 11.000 mm
- MAX OPERATING VACUUM -730 mm Hg
- WEIGHT 2.900 Kg (with trolley and standard plates quantity)
DIMENSIONS OF THE TIMBER PILE
- WIDTH 1.100 mm
- LENGTH 5.000 mm
- HEIGHT 990 mm
- Nr. PLATES INCLUDED 12
- No. ADDITIONAL PLATES 0
- WEIGHT OF EACH PLATE 57 Kg
- NET WOOD VOLUME Approx. 5 m3
DEVICES

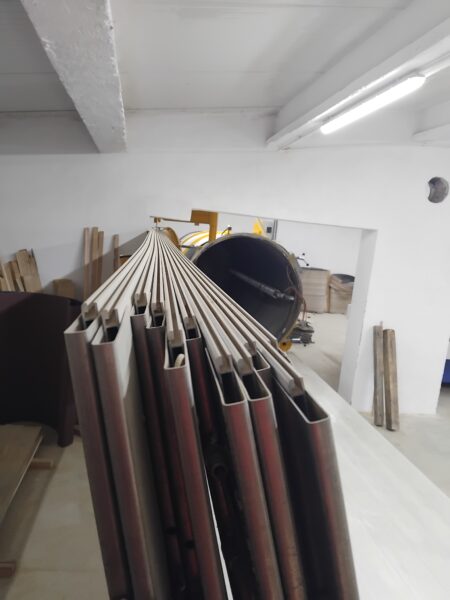

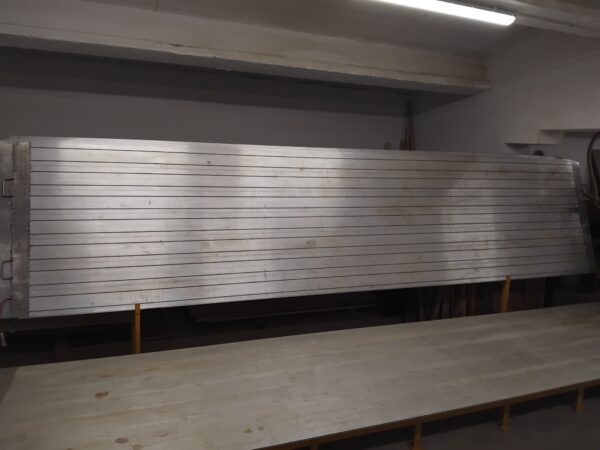

- ELECTRIC HEATING PLATES N. 12 Plates of 1100x5000x10 mm – 1,250 kW/each
- AUTOMATED TEMPERATURE CONTROL SYSTEM FOR HEATING PLATES USING “PID” CONTROLLERS N. 1 Included

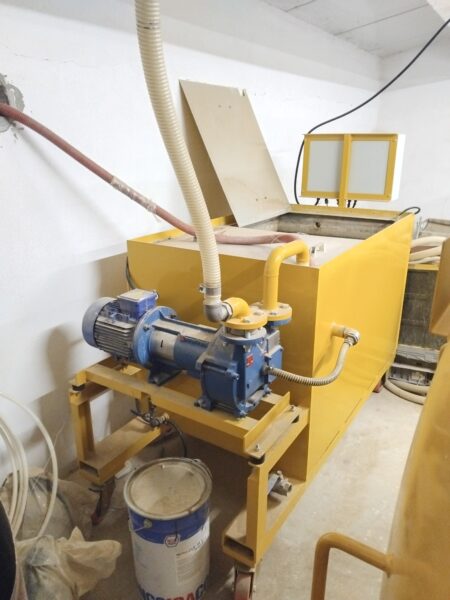

- OIL VACUUM PUMP N. 1 – 100 m3/h – 2,2 KW

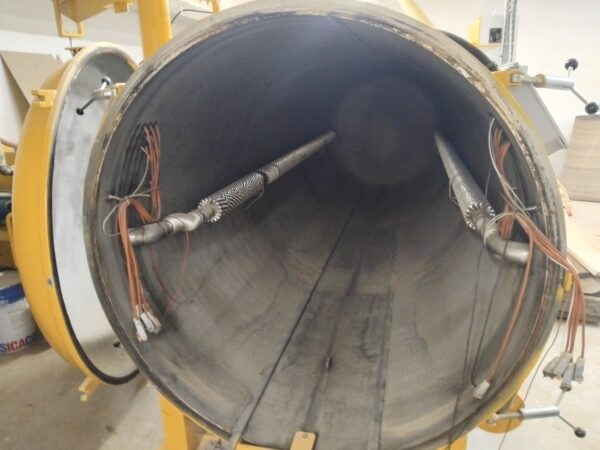

- INTERNAL CONDENSERS N. 2 Turbo fans of 0,55 KW/each – 380Vac with stainless steel pipes.
- ONE-WAY VALVE N. 1 Clapet: one ¾” for vacuum circuit.
- PNEUAMATIC AIR RETURN VALVE N. 1 24 Vac: one 1″ for autoclave.
- MANUAL AIR RETURN N. 1 1″ ball valve
- ELECTRICAL CONTROL PANEL N. 1 PLC type Siemens S7-1200, with touch panel.
- ISVE SERVER CONNECT WITH REMOTE SERVICE AND CONTROL N. 1 Included
- ENERGY METER N. 1 Included
- MOISTURE PROBES N. 2 Double probes for core and surface moisture reading,
- TEMPERATURE PROBES N. 1 For wood core reading.
- PLATES-HOLDER STANDS N. 2 Included
- INSTRUCTION BOOKLET N. 1 in English with CE certificate and wiring diagrams
